8. WPF

참고자료

02_WPF_application_generation.pdf

1.40MB



p.47, 49, 50 실습

<Grid>
	<Grid.RowDefinitions>
		<RowDefinition Height="*"/>
		<RowDefinition Height="50"/>
	</Grid.RowDefinitions>
	<Grid.ColumnDefinitions>
		<ColumnDefinition Width="*"/>
		<ColumnDefinition Width="150"  />
	</Grid.ColumnDefinitions>
	<ListBox x:Name="LbxMessages" Grid.ColumnSpan="2" Margin="5"/> <!-- 행과 열의 위치를 입력안할 시 0,0으로 들어가게됨 -->
	<TextBox Grid.Row="1" Grid.Column="0" Margin="5" Text="메시지를 입력하세요."/>
	<Button Grid.Row="1" Grid.Column="1" Margin="5" Content="SEND" />
</Grid>

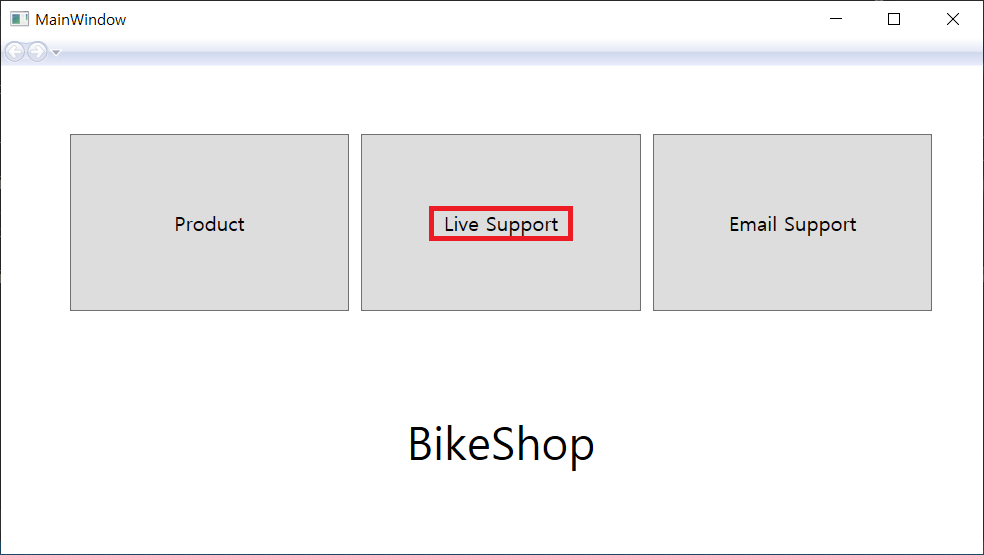

Menu에서 2번째버튼(Live Support)를 더블클릭해 Click 이벤트를 생성하고 코드를 입력한다.

private void Button_Click_1(object sender, RoutedEventArgs e)
{
	NavigationService.Navigate(new Uri("/Discussion.xaml", UriKind.Relative));
}

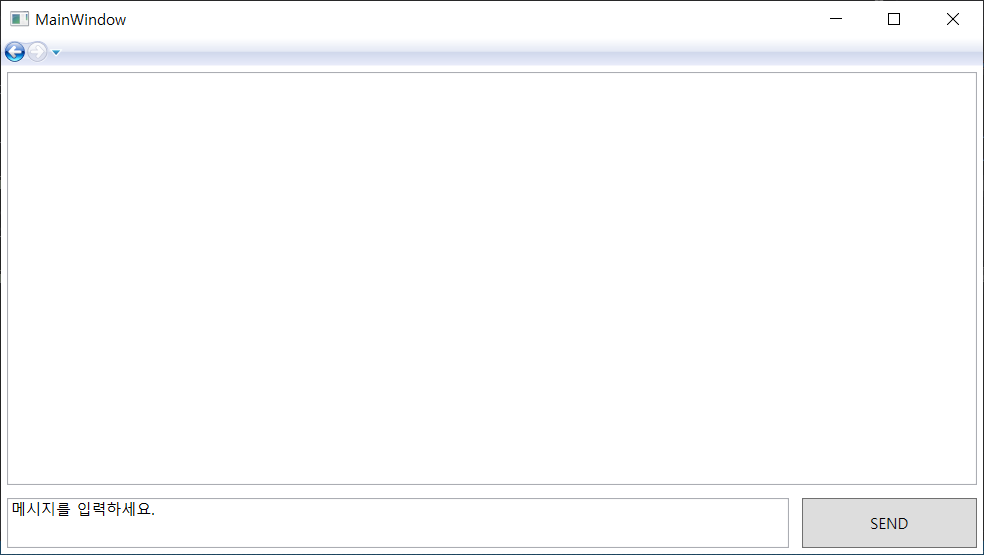

예제 실행 화면



p.51,52 이론

p.53 실습

MainWindow 코드에서 Source 변경

<Frame x:Name="MainFrame" Source="TestPage.xaml" NavigationUIVisibility="Visible"/>



TestPage 코드 변경

<Page x:Class="BikeShop.TestPage"
      xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
      xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
      xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
      xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
      xmlns:local="clr-namespace:BikeShop"
      mc:Ignorable="d"
      d:DesignHeight="450" d:DesignWidth="800"
      Title="TestPage">

    <Grid>
        <!--<Grid Width="150" Height="150" Background="Red">
            <Button Content="Click" Margin="10,5,15,20"/>
        </Grid>-->
        <Grid.RowDefinitions>
            <RowDefinition Height="*"/>
            <RowDefinition Height="*"/>
            <RowDefinition Height="*"/>
        </Grid.RowDefinitions>
        <Grid.ColumnDefinitions>
            <ColumnDefinition Width="*"/>
            <ColumnDefinition Width="*"/>
            <ColumnDefinition Width="*"/>
        </Grid.ColumnDefinitions>

        <!--<Button Content="I'm first Button"  Grid.Row="0" Grid.Column="0" Margin="10" Grid.ColumnSpan="2"/>
        <Button Content="I'm first Button"  Grid.Row="0" Grid.Column="2" Margin="10"/>
        <ComboBox Grid.Row="1" Grid.Column="1" Height = "40" Margin="10" VerticalAlignment="Top" Grid.RowSpan="2" ScrollViewer.VerticalScrollBarVisibility="Visible">
            <TextBlock Text="Element 1"/>
            <TextBlock Text="Element 2"/>
            <Label Content="Element 3"/>
            <GroupBox Header="Element 4">
                Blar Blar Blar Blar
            </GroupBox>

        </ComboBox>
        <Button Content="I'm Third Button" Grid.Row="2" Grid.Column="0" Margin="10"/>
        <Button Content="I'm Third Button" Grid.Row="2" Grid.Column="2" Margin="10" />-->

		<!-- 데이터 바인딩 예제 -->
		<StackPanel Grid.Row="0" Grid.Column="0" Grid.ColumnSpan="3" Orientation="Vertical">
			<Slider x:Name="Slider" Minimum="0" Maximum="100" Value="50" Height="50"/>
			<ProgressBar Value="{Binding Value, ElementName = Slider}" Height="50"/>
			<TextBlock TextAlignment ="Center" Text="{Binding Value, StringFormat={}{0:#},ElementName = Slider}" FontSize = "20"/>
		</StackPanel>
	</Grid>
</Page>

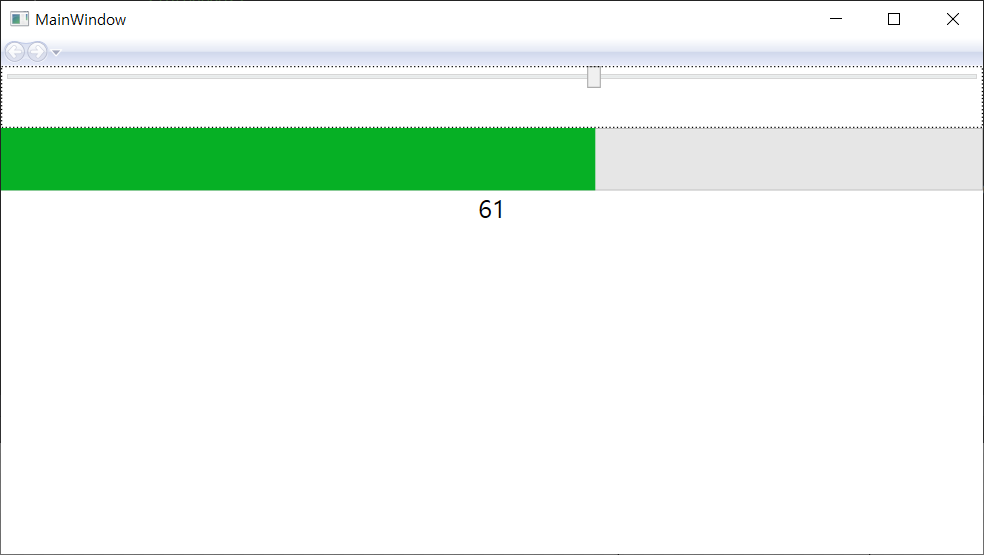

예제 실행 화면



p.54, 55 이론

p.58, 59, 60 실습

<Page x:Class="BikeShop.TestPage"
      xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
      xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
      xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
      xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
      xmlns:local="clr-namespace:BikeShop"
      mc:Ignorable="d"
      d:DesignHeight="450" d:DesignWidth="800"
      Title="TestPage" Loaded="Page_Loaded">

    <Grid>
        <!--<Grid Width="150" Height="150" Background="Red">
            <Button Content="Click" Margin="10,5,15,20"/>
        </Grid>-->
        <Grid.RowDefinitions>
            <RowDefinition Height="*"/>
            <RowDefinition Height="*"/>
            <RowDefinition Height="*"/>
        </Grid.RowDefinitions>
        <Grid.ColumnDefinitions>
            <ColumnDefinition Width="*"/>
            <ColumnDefinition Width="*"/>
            <ColumnDefinition Width="*"/>
        </Grid.ColumnDefinitions>

        <!-- 그리드 표현 보기 예제 -->
        <!--<Button Content="I'm first Button"  Grid.Row="0" Grid.Column="0" Margin="10" Grid.ColumnSpan="2"/>
        <Button Content="I'm first Button"  Grid.Row="0" Grid.Column="2" Margin="10"/>
        <ComboBox Grid.Row="1" Grid.Column="1" Height = "40" Margin="10" VerticalAlignment="Top" Grid.RowSpan="2" ScrollViewer.VerticalScrollBarVisibility="Visible">
            <TextBlock Text="Element 1"/>
            <TextBlock Text="Element 2"/>
            <Label Content="Element 3"/>
            <GroupBox Header="Element 4">
                Blar Blar Blar Blar
            </GroupBox>

        </ComboBox>
        <Button Content="I'm Third Button" Grid.Row="2" Grid.Column="0" Margin="10"/>
        <Button Content="I'm Third Button" Grid.Row="2" Grid.Column="2" Margin="10" />-->

        <!-- 데이터 바인딩 예제 -->
        <!--<StackPanel Grid.Row="0" Grid.Column="0" Grid.ColumnSpan="3" Orientation="Vertical">
            <Slider x:Name="Slider" Minimum="0" Maximum="100" Value="50" Height="50"/>
            <ProgressBar Value="{Binding Value, ElementName = Slider}" Height="50"/>
            <TextBlock TextAlignment ="Center" Text="{Binding Value, StringFormat={}{0:#},ElementName = Slider}" FontSize = "20"/>
        </StackPanel>-->

        <!-- -->
        <StackPanel Grid.Row="0" Grid.Column="1" Grid.RowSpan="3">
            <ComboBox ItemsSource="{Binding}" ScrollViewer.VerticalScrollBarVisibility="Visible">
                <ComboBox.ItemTemplate>
                    <ItemContainerTemplate>
                        <StackPanel>
                            <TextBlock Text="Speed"/>
                            <TextBox Text="{Binding Speed}"/>
                            <Slider Value="{Binding Speed}" Maximum="100"/>
                            <TextBlock Text = "Color"/>
                            <Border Height="10">
                                <Border.Background>
                                    <SolidColorBrush Color="{Binding Color}"/>
                                </Border.Background>
                            </Border>
                            <TextBox Text="{Binding Color}" />
                        </StackPanel>
                    </ItemContainerTemplate>
                </ComboBox.ItemTemplate>
            </ComboBox>
        </StackPanel>
    </Grid>
</Page>

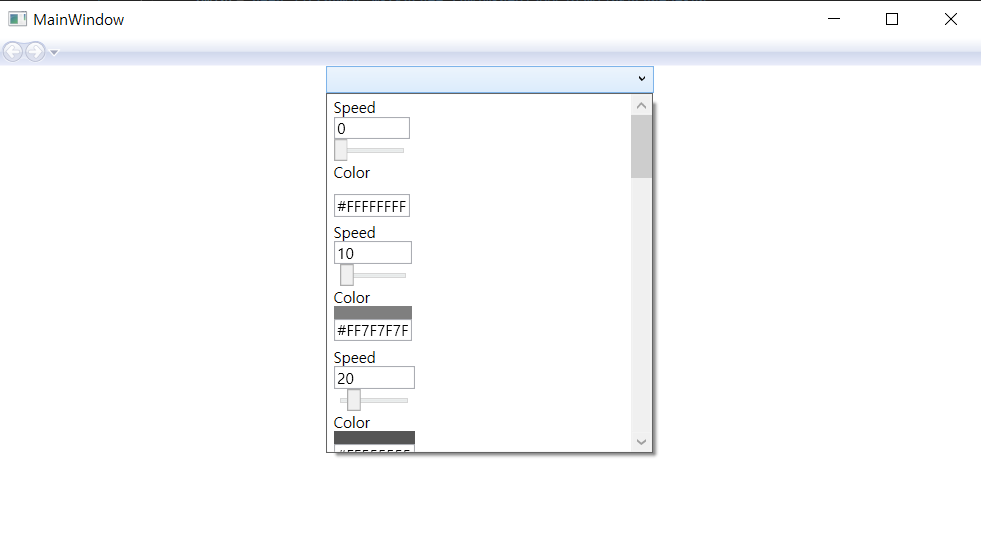

예제 실행 화면



p.61 이론

p.62,63 실습

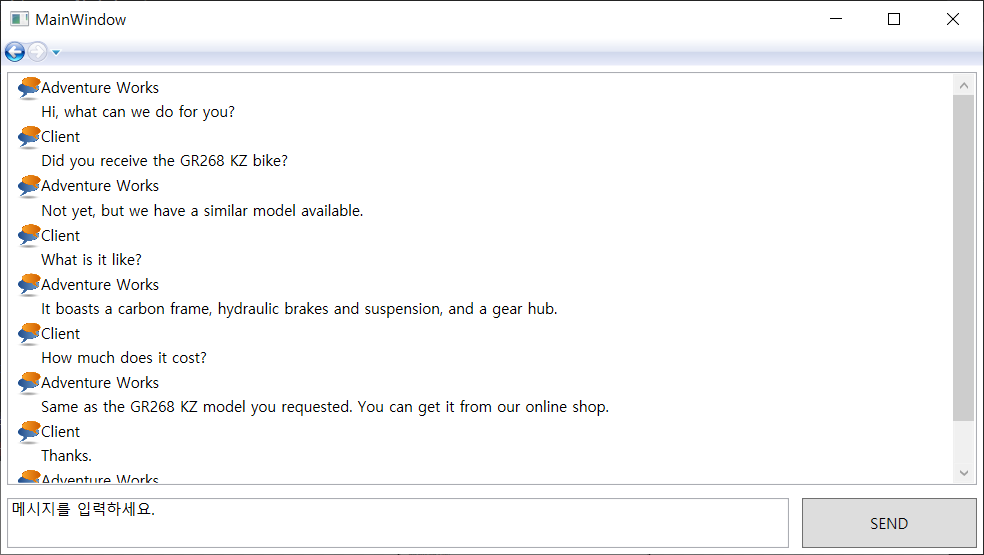

예제 실행 화면



5장에 파생클래스와 인터페이스의 개념 이론



p.64 실습

p.85, 86, 87, 88, 103 이론
