7. WPF(Windows Presentation Foundation)

소스 및 필기는 아래 파일 참고.

01_WPF_start.pdf

0.88MB

02_WPF_application_generation.pdf

1.40MB



ex)  StackPanel에 여러 도구 추가해보기

<Window x:Class="WpfApp1.MainWindow"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
        xmlns:local="clr-namespace:WpfApp1"
        mc:Ignorable="d"
        Title="MainWindow" Height="450" Width="800">
    <StackPanel Orientation="Vertical"> <!-- 스택패널 시작 -->
        <TextBlock Width="100" Height="40" Text="TextBlock"/>
        <TextBox Width="100" Height="35" Text = "TextBox"/>
        <ProgressBar Width="100" Height="20" Value="20" Minimum="0" Maximum="100"/>
        <Slider Width="100" Height="30" Value="10" Maximum="100"/>
        <PasswordBox Password="Plan" Width="100" Height="30"/>
    </StackPanel>
</Window>

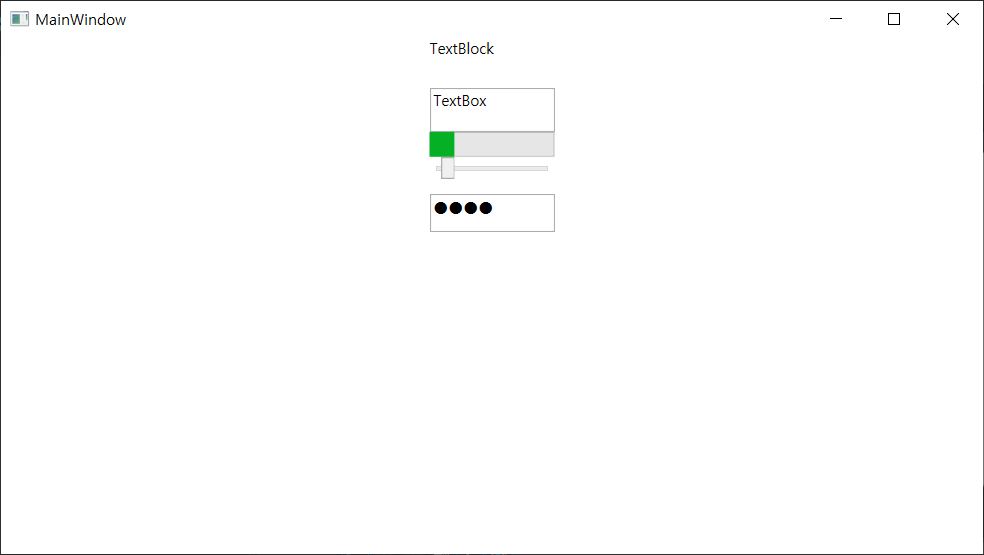

예제 실행 화면



ex) 사진, 동영상

<Window x:Class="WpfControlApp.MainWindow"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
        xmlns:local="clr-namespace:WpfControlApp"
        mc:Ignorable="d"
        Title="MainWindow" Height="450" Width="800">
    <Grid>
        <Image HorizontalAlignment="Left" Height="240" Margin="519,86,0,0" VerticalAlignment="Top" Width="243" Source="cat.jpg" Stretch="UniformToFill"/>
        <MediaElement HorizontalAlignment="Left" Height="265" Margin="28,61,0,0" VerticalAlignment="Top" Width="491" Source="cat.wmv" LoadedBehavior="Play"/>
    </Grid>
</Window>

예제 실행 화면



ex) 사각형, 원

<Window x:Class="WpfControlApp.MainWindow"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
        xmlns:local="clr-namespace:WpfControlApp"
        mc:Ignorable="d"
        Title="MainWindow" Height="450" Width="800">
    <Grid>
        <Rectangle Fill="#FFDB3EE8" HorizontalAlignment="Left" Height="138" Margin="185,110,0,0" Stroke="Black" VerticalAlignment="Top" Width="150" RadiusY="20" RadiusX="20"/>
        <Ellipse Fill="#FFDB3EE8" HorizontalAlignment="Left" Height="138" Margin="472,110,0,0" Stroke="Black" VerticalAlignment="Top" Width="138"/>

    </Grid>
</Window>

예제 실행 화면



ex) 버튼, 라디오버튼, 체크박스

<Window x:Class="WpfControlApp.MainWindow"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
        xmlns:local="clr-namespace:WpfControlApp"
        mc:Ignorable="d"
        Title="MainWindow" Height="450" Width="800">
    <Grid>
        <Button Content="Button" HorizontalAlignment="Left" Margin="61,63,0,0" VerticalAlignment="Top" Width="95" Height="43"/>
        <ToggleButton Content="Button" HorizontalAlignment="Left" Margin="176,63,0,0" VerticalAlignment="Top" Width="95" Height="43"/>
        <CheckBox Content="CheckBox" HorizontalAlignment="Left" Margin="61,137,0,0" VerticalAlignment="Top"/>
        <RadioButton Content="RadioButton" HorizontalAlignment="Left" Margin="61,187,0,0" VerticalAlignment="Top"/>

    </Grid>
</Window>

예제 실행 화면



예제 실행 화면



예제 실행 화면



예제 실행 화면



예제 실행 화면
